    New Cayman Roll Bar Available!

    Hey Fellas,

    We've been hard at work building the products that you've asked for! I would like to introduce the newest product available through Hergesheimer MotorSports from Lucas Fab Industries. The new Cayman roll bar is the answer for the track enthusiast looking for some actual rollover protection, not just a harness bar.

    Specs:

    * Constructed of 1.75" diameter, 0.95 wall thickness, 4130 Chromolly steel
    * Beautifully welded by hand in Southern California
    * True race cage main hoop and diagonal for roll over protection
    * Complete bolt in installation and removal using factory mounting points
    * Slight carpet trimming for snug fit.
    * Available in raw steel or standard powdercoat colors
    * Removable rear down tubes and rear diagonal with motorsport couplers
    * Introductory pricing is $2395 including black or white powdercoat. (Raw steel -$100)

    Fits all Cayman models from 2005-2012!


    Contact me for orders. Dealer inquiries welcomed. We also have two Cayman harness bar options available if you're looking for something more subtle.

    Eric @ Hergesheimer MotorSports
    (949) 458-7223
    eric@herg.net















    Last edited by Eric523; 09-06-2011 at 10:55 PM.

  2. #2
    987SCoupe's Avatar
    987SCoupe is offline Porsche Prophet
    Join Date
    Dec 2010
    Location
    California
    Posts
    73
    Images
    14
    Downloads
    18
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Eric, looks nice. What are the differences on the Gen 2 that make this specific to Gen 1 cars? Will this work with the factory sports seats without creating potential head injuries on the street?
    Ron

  3. #3
    Cayman_Sense's Avatar
    Cayman_Sense is offline Porsche Activist
    Join Date
    Oct 2009
    Location
    Bay Area, CA
    Posts
    383
    Downloads
    3
    Uploads
    0
    Items for Sale

    Re: New Cayman Roll Bar Available!

    Wow! Looks incredible. Very clean welds and great finish. Looks good and is functional (allows access to the engine bay).

    Awesome work HRG!

  4. #4
    chucko's Avatar
    chucko is offline PCA / POC Member and Club Donor
    Join Date
    Aug 2006
    Location
    Santa Monica, CA
    Posts
    205
    Images
    173
    Downloads
    31
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    How much does the complete roll bar weigh with fasteners ?

  5. #5
    Eric523 is offline Bronze Sponsor
    Join Date
    Mar 2009
    Location
    Newport Beach, CA
    Posts
    202
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Quote Originally Posted by 987SCoupe View Post
    Eric, looks nice. What are the differences on the Gen 2 that make this specific to Gen 1 cars? Will this work with the factory sports seats without creating potential head injuries on the street?
    Ron
    Thanks Ron. I would really like to fit one into a Gen 2 to make sure, but I don't know of any reason it wouldn't. I would offer a discounted bar to a member that wouldn't mind us using their car as the first Gen2.

    The potential head injuries with a bar in your car can occur if the seat back breaks in half. This bar would be no different than having the stock boxster bar behind your head, or a clubsport bar in a 911 delivered in Europe. I do suggest using this bar with track seats for best fit and function however. The seats pictured are at the very rear seating position for someone well over 6'.
    Last edited by Eric523; 05-04-2011 at 10:23 PM.

  6. #6
    Eric523 is offline Bronze Sponsor
    Join Date
    Mar 2009
    Location
    Newport Beach, CA
    Posts
    202
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Quote Originally Posted by chucko View Post
    How much does the complete roll bar weigh with fasteners ?
    The complete bar with fasteners weighed in at 46lbs.

    In the car pictured, we lost 49 lbs by changing the seats to the lightweight Recaro Pole Positions. So we lost 3 lbs overall with the install.

  7. #7
    rubber_ducky's Avatar
    rubber_ducky is offline Site Donor
    3,000 post club
    Join Date
    Sep 2007
    Location
    Boston-ish, MA
    Posts
    3,524
    Downloads
    11
    Uploads
    0
    Items for Sale

    Re: New Cayman Roll Bar Available!

    Looks great. Very clean.

  8. #8
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    My car was used as the prototype for this bar and I have to commend HRG and Lucas Fab on doing an amazing job. The fit and finish on the bar are top notch.

    The idea for this bar came up at our last POC event when there were about 6 CSX (Cayman Spec) guys at the event and we began to talk about safety and roll over protection. Without taking anything away from whats available out there in the market, this bar was designed with this in mind. For me personally, I gained 2 seconds off my best lap time this past weekend. I would attribute some of this improvement to becoming better as a driver, feeling more confident in pushing the car because I have some protection now, and being held in place better with the new equipment. Hergesheimer did a really good job with the install as the car performed flawlessly all weekend. Thanks Eric!

    I'm going to take some up close pics this weekend, and post here.

  9. #9
    KS-CS's Avatar
    KS-CS is offline Super Moderator
    3,000 post club
    Join Date
    Aug 2007
    Location
    DFW TX
    Posts
    3,873
    Images
    425
    Downloads
    169
    Uploads
    8
    Blog Entries
    23
    Items for Sale

    Re: New Cayman Roll Bar Available!

    Nice looking rollbar . . . How, and to what do the main hoop base plates attach? Does it require drilling through the floor pan?

  10. #10
    Eric523 is offline Bronze Sponsor
    Join Date
    Mar 2009
    Location
    Newport Beach, CA
    Posts
    202
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Quote Originally Posted by KS-CS View Post
    Nice looking rollbar . . . How, and to what do the main hoop base plates attach? Does it require drilling through the floor pan?

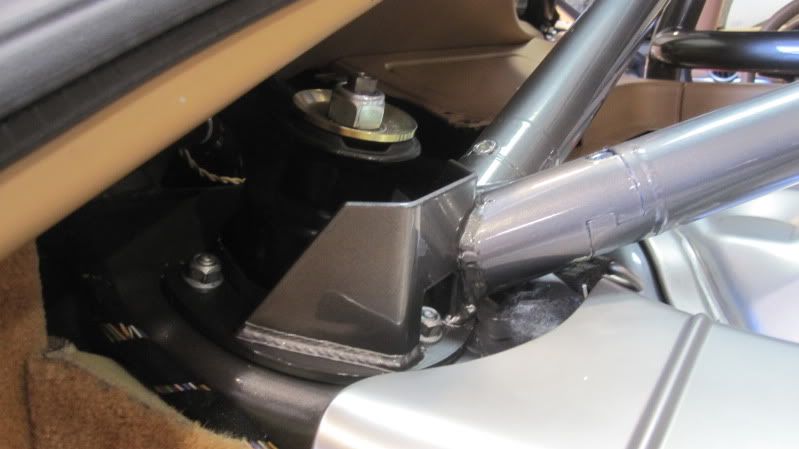

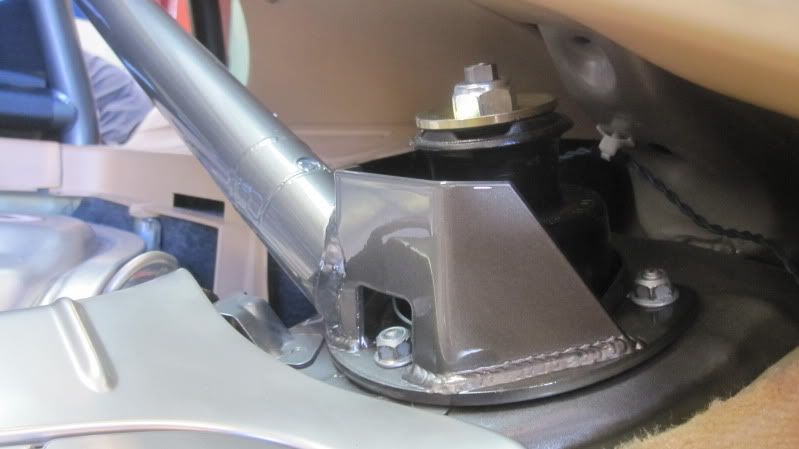

    Thanks. The main hoop base plates attach to the factory Boxster roll bar studs on the rear bulkhead. The Cayman's come with these studs already installed. There is absolutely no drilling required. I personally don't like the idea of bars mounting to the floor pan.
    Last edited by Eric523; 05-05-2011 at 01:11 PM.

  11. #11
    bxstr's Avatar
    bxstr is offline Porsche Orator
    1,000 post club
    Join Date
    May 2009
    Location
    OH
    Posts
    1,817
    Downloads
    6
    Uploads
    0
    Blog Entries
    10
    Items for Sale
    Looks great.


    Sent from my iPhone using Tapatalk
    bxstr

    Cars-

    2009 BMW 335i Xdrive Coupe Space Grey Metallic
    2003 Porsche Boxster-Lapis Blue Metallic (SOLD)

  12. #12
    Lobaeux's Avatar
    Lobaeux is offline PCA Member
    500 post club
    Join Date
    Sep 2010
    Location
    Fort Lauderdale, FL
    Posts
    966
    Downloads
    2
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Looks real nice, I might be in the market for one of these soon.
    Joe - 2007 Porsche Cayman S, 2011 Porsche Cayenne

  13. #13
    KS-CS's Avatar
    KS-CS is offline Super Moderator
    3,000 post club
    Join Date
    Aug 2007
    Location
    DFW TX
    Posts
    3,873
    Images
    425
    Downloads
    169
    Uploads
    8
    Blog Entries
    23
    Items for Sale

    Re: New Cayman Roll Bar Available!

    Quote Originally Posted by Eric523 View Post
    Thanks. The main hoop base plates attach to the factory Boxster roll bar studs on the rear bulkhead. The Cayman's come with these studs already installed. There is absolutely no drilling required. I personally don't like the idea of bars mounting to the floor pan.
    Thanks for the info, I wasn't aware that those rollbar mounting points already existed in the Caymans.

  14. #14
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Quote Originally Posted by jhuang25 View Post
    My car was used as the prototype for this bar and I have to commend HRG and Lucas Fab on doing an amazing job. The fit and finish on the bar are top notch.

    The idea for this bar came up at our last POC event when there were about 6 CSX (Cayman Spec) guys at the event and we began to talk about safety and roll over protection. Without taking anything away from whats available out there in the market, this bar was designed with this in mind. For me personally, I gained 2 seconds off my best lap time this past weekend. I would attribute some of this improvement to becoming better as a driver, feeling more confident in pushing the car because I have some protection now, and being held in place better with the new equipment. Hergesheimer did a really good job with the install as the car performed flawlessly all weekend. Thanks Eric!

    I'm going to take some up close pics this weekend, and post here.

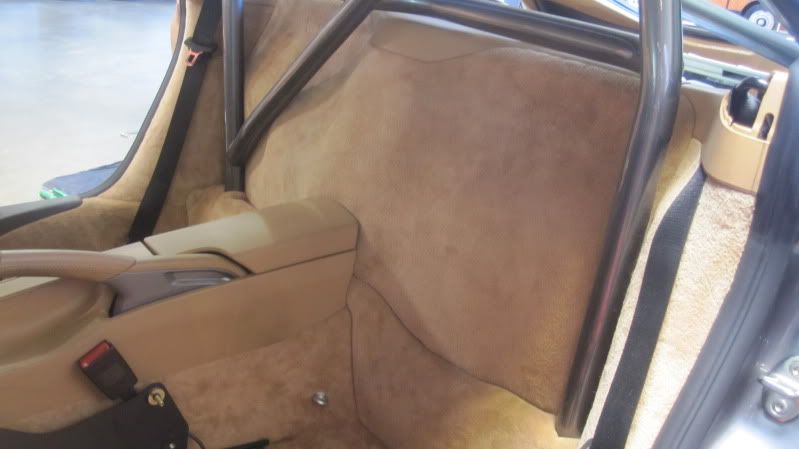

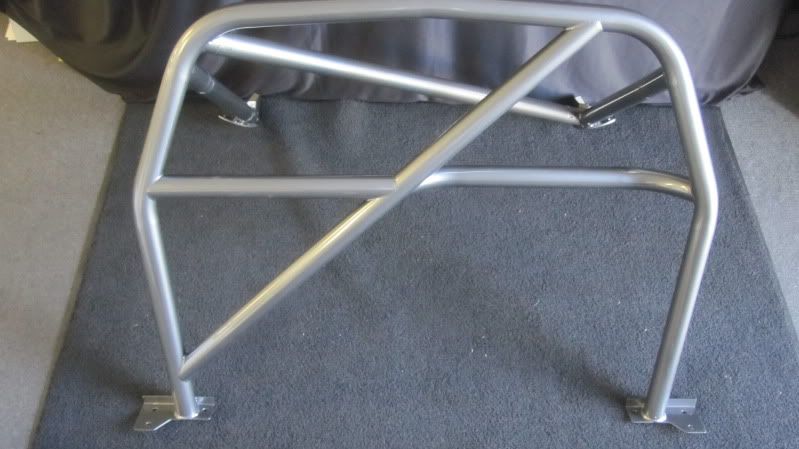

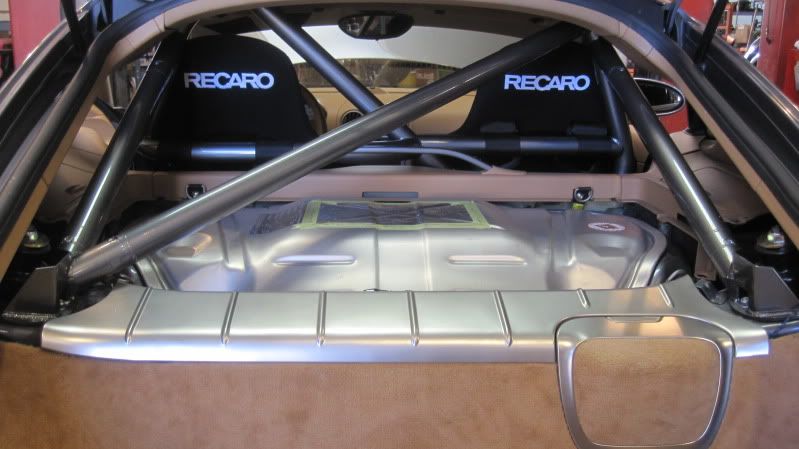

    Here are some pics of the roll bar taken today. Enjoy!
    Attached Thumbnails Attached Thumbnails New Cayman Roll Bar Available!-dsc_0512.jpg   New Cayman Roll Bar Available!-dsc_0513.jpg   New Cayman Roll Bar Available!-dsc_0511.jpg

  15. #15
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

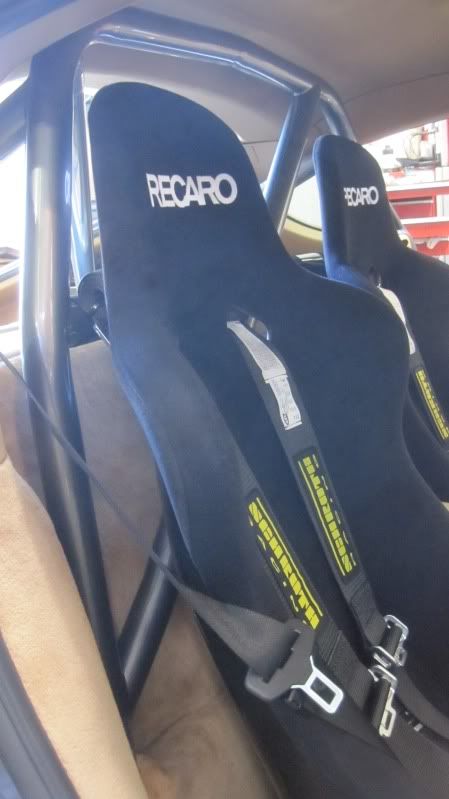

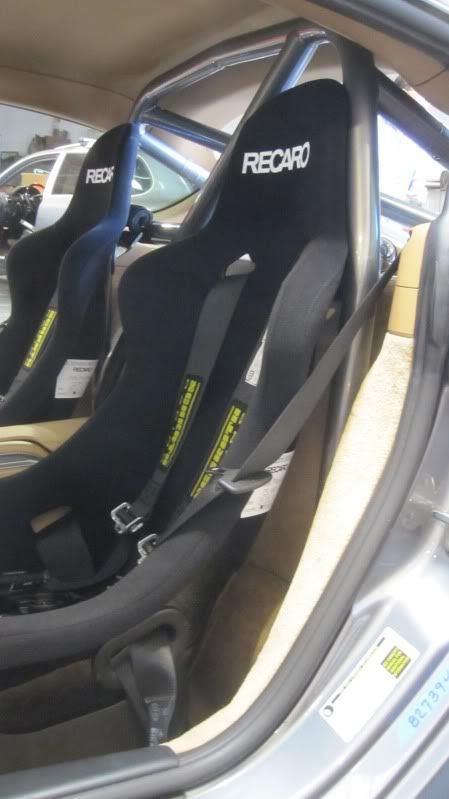

    Sorry, can only post 3 at a time. The top of the bar to the headliner of the car is about a finger and a half gap... I can't get 2 fingers in there as you can see in the picture below.
    Attached Thumbnails Attached Thumbnails New Cayman Roll Bar Available!-dsc_0517.jpg   New Cayman Roll Bar Available!-dsc_0520.jpg   New Cayman Roll Bar Available!-dsc_0519.jpg

  16. #16
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    The bar has a total of 6 couplers. This allows the removal of the diagonal bar and both side bars in the rear to be removed for easy access to the upper engine cover. The main hoop can also be loosened and tilted forward for access to the engine from behind the seats (without the complication of removal of the entire main hoop from the car).
    Attached Thumbnails Attached Thumbnails New Cayman Roll Bar Available!-dsc_0523.jpg   New Cayman Roll Bar Available!-dsc_0525.jpg   New Cayman Roll Bar Available!-dsc_0526.jpg

  17. #17
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    some more angles.
    Attached Thumbnails Attached Thumbnails New Cayman Roll Bar Available!-dsc_0527.jpg   New Cayman Roll Bar Available!-dsc_0528.jpg   New Cayman Roll Bar Available!-dsc_0529.jpg

  18. #18
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    a few more, just trying to get you guys as many angles as possible. harder to do now with the seats in. Eric and a number of other guys in the club recommended OEM manual seat rails, I found some on Ebay for a reasonable price. They work great, don't get stuck like some aftermarket ones I had in a previous car. I'm very happy with them. The 2nd pic is through the side mirror thus some glare. Please direct any sales related questions to Eric at Hergesheimer.
    Attached Thumbnails Attached Thumbnails New Cayman Roll Bar Available!-dsc_0531.jpg   New Cayman Roll Bar Available!-dsc_0532.jpg   New Cayman Roll Bar Available!-dsc_0533.jpg
    Last edited by jhuang25; 05-15-2011 at 04:20 PM.

  19. #19
    gobynetwork's Avatar
    gobynetwork is offline Porsche Enthusiast
    Join Date
    Mar 2011
    Location
    SoCal
    Posts
    163
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Bump for Hergesheimer and their new bar. I went their last week to take a look at it. I think it is a well designed bar, the best I have seen...

    Goby

  20. #20
    jhuang25's Avatar
    jhuang25 is offline Porsche Activist
    Join Date
    Jan 2010
    Location
    CA
    Posts
    283
    Downloads
    1
    Uploads
    0

    Re: New Cayman Roll Bar Available!

    Quote Originally Posted by gobynetwork View Post
    Bump for Hergesheimer and their new bar. I went their last week to take a look at it. I think it is a well designed bar, the best I have seen...

    Goby
    Gobynetwork, I'm assuming you drive a Cayman S? Have you brought her out to any POC events yet?
